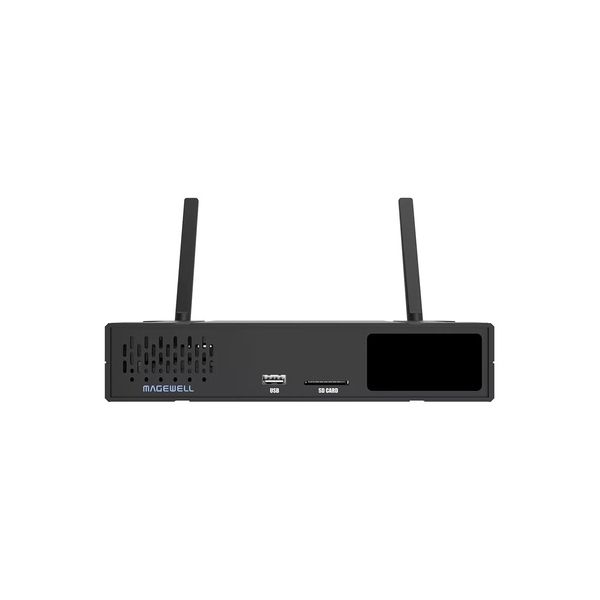

Magewell Ultra Encode AIO

Magewell Ultra Encode AIO; Encoder with HDMI and SDI inputs; supports 4K encoding and streaming via HDMI and up to 1080p HD encoding via SDI; simultaneous multi-protocol streaming to up to six destinations (eg. Twitch, Youtube, Facebook), with bitrates up to 32Mbps per stream; supports recording inputs to SD cards, USB storage or networked storage; Input Features:; HDMI max input signal: 4096x2160 60fps; SDI max input signal: 4096x2160 30fps; Input 16-Channel SDI embedded audio; Input 8-Channel, 24-bit HDMI embedded audio; Input Audio from 3.5mm LINE IN; Encoding Features; Dual stream encoding profiles: main stream and sub stream (Max bitrate: 32Mbps); Support for H.264/HEVC video encoding; Encoding 8-channel AAC; Streaming Features:; Natively support streaming to Facebook, Twitch and YouTube; Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI®|HX2/NDI®|HX3/HLS/TS over UDP/TS over RTP/TVU ISSP/ZIXI; Allow simultaneous 6 sessions over multiple streaming protocols; Support for streaming schedule for each destination; Recording Features:; Record to an SD card or external USB storage, MP4 or MOV format supported; Support for loop recording when recording to SD card; Share recorded files with NFS/CIFS/SMB; Support for recording schedule; Others:; LCD monitor for system status and input signal; Internet connectivity via wired Ethernet and wireless network; Remote control via Web GUI and Control Hub; Provide HTTP APIs; Techn. Data:; Power supply: DC 9 ~ 18 V, max current: ~ 1.15 A; Max. power consumption: ~ 11.5 W; Dimensions: 214.9 x 128.2 x 44.55 mm; Included in delivery: 1x Screw locking DC power adapter, 2x Wi-Fi antenna, 1x HDMI cable, 7x M2.5 screws, 1x Retainer plate, 1x 1U short rack ear, 2x 1U long rack ears
