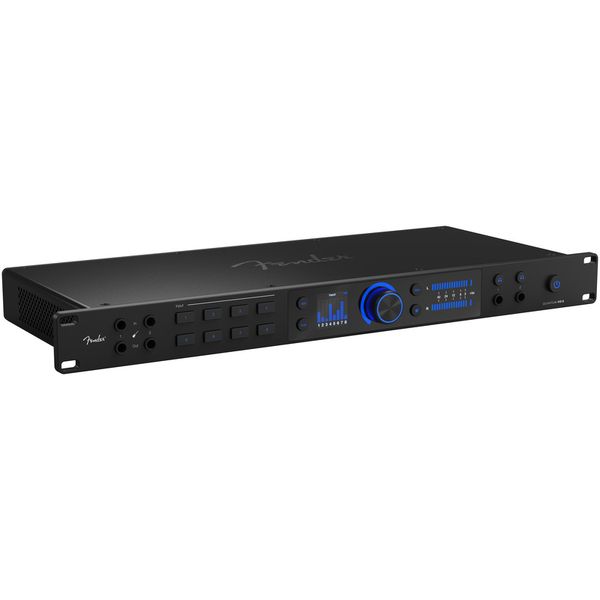

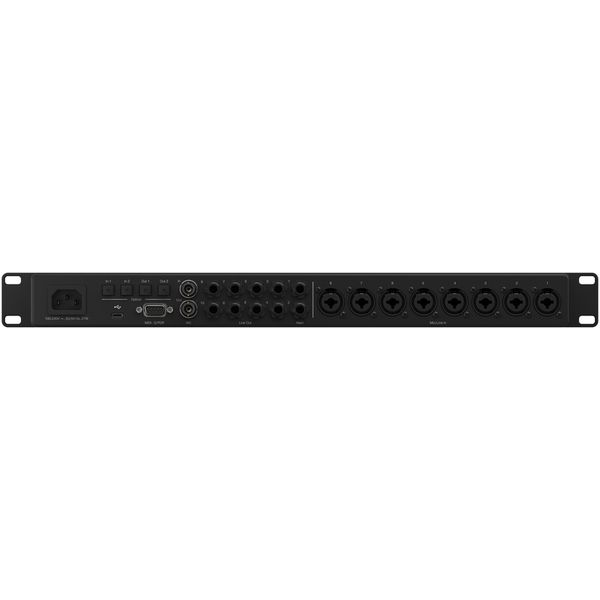

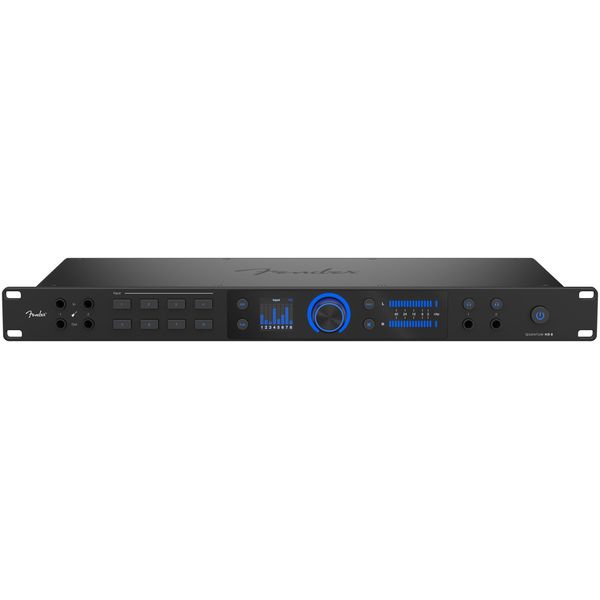

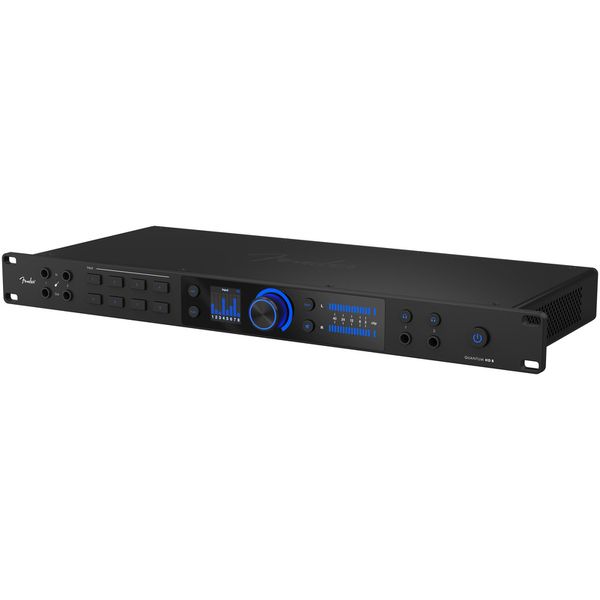

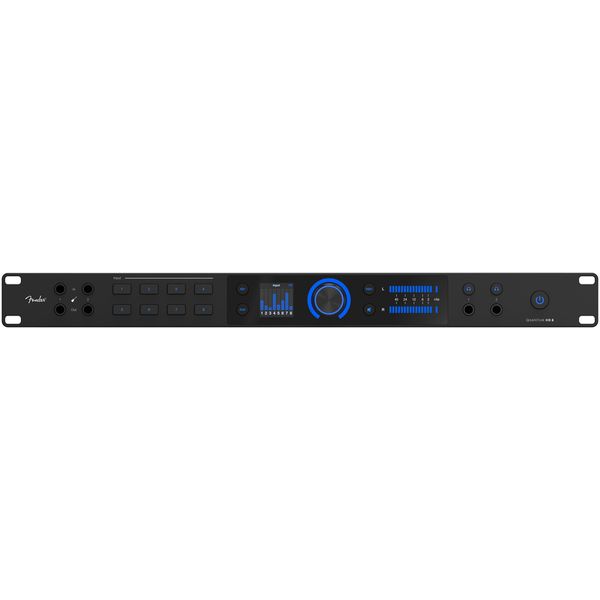

Fender Quantum HD8
26 x 30 USB 2.0 Audio Interface with USB-C Connection
- Conversion with up to 32 bit / 192 kHz
- 48 V phantom power
- 8 MAX-HD preamps with 75 dB gain each
- Auto Gain function
- Control functions such as preamplification and phantom power directly from Studio Pro or the Universal Control app
- High-resolution full-colour screen for monitoring the input and output levels
- Loopback function
- Integrated speaker switching for the use of multiple speaker pairs
- Latency-free monitoring
- 8 combo inputs mic/line (XLR/jack)
- 2 front-sided instrument inputs
- 2 Re-Amp outputs
- 2 ADAT inputs and outputs
- Stereo S/PDIF input and output
- 2 balanced TRS main outputs
- 8 TRS jack line outputs
- 2 stereo headphone outputs
- MIDI In and Out
- System requirements Interface: Windows 10 or later, Mac OSX 10.14 or later
- Dimensions (W x D x H): 483 x 219 x 44 mm
- Weight: 2.86 kg
- Includes 1.5 m USB-C to USB-C cable, breakout cable for MIDI and S/PDIF, and Fender Studio Pro Perpetual (download)
-
Item number 633940
-
Sales Unit 1 piece(s)
-
Recording / Playback Channels 26x32
-
Number of Mic Inputs 8
-
Number of Line Inputs 8
-
Instrument Inputs 2
-
Number of Line Outs 10
-
Headphone Outs 2
-
Phantom power Yes
-
Number of S/PDIF Connectors 1
-
Number of ADAT Connectors 2
-
Numer of AES/EBU Connectors 0
-
Number of MADI Connectors 0
-
Ethernet 0
-
Other Connectors No
-
MIDI interface Yes
-
Word Clock 1xIn, 1xOut
-
Max. sample rate (kHz) 192 kHz
-
Max. resolution in bit 32 bit
-
USB Bus-Powered No
-
Incl. power supply Yes
-
USB Version 2.0
-
Width in mm 483 mm
-
Depth in mm 219 mm
-
Height in mm 44 mm
-
Connection Format USB port Type C
-
Zero latency monitoring Yes
