the t.bone free solo Twin PT823 HeadmiKeD

Bundle offer comprising

the t.bone free solo Twin PT 823 MHz

2-Channel UHF Wireless System

With two bodypack transmitters
Frequency range: 823 – 832 MHz
Eight pre-programmed frequency groups with eight available channels each
One user group with freely selectable frequencies
Adjustable squelch with threshold display on the receiver
Frequency scan on the receiver
Adjustable AF output
Adjustable transmission power: 5 mW, 10 mW, 20 mW
Infrared transfer of the settings from the receiver to the transmitter
Pilot tone
25 KHz increments
19" 1 U housing with 2x BNC output for antennas
XLR and jack outputs
Operates with 12 V / 600 mADC power supply (centre positive)
Transmitter housing: Plastic
3-pin TQG connector, male
LCD screen
Operates with two AA batteries or rechargeable batteries
Includes guitar cable, plastic case and rack mount
Suitable antenna converter: Art. 177448 (not included)

2x the t.bone HeadmiKe - D AKG

Headset Microphone

Lightweight condenser headset microphone
Two earhooks
Left/right adjustable
Polar pattern: Kidney
Frequency range: 50 - 20000 Hz
Sensitivity: 4.4 mV / Pa, -47.2 dB re 1 V / Pa
Sound pressure level: 115 dB
Impedance: 750 Ohm
3-Pin mini XLR connector suitable for AKG Bodypack transmitter
Cable length: approx. 120 cm
Colour: Beige
Includes cable clip
Replacement windscreen: Art. 355914 (not included)

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since August 2018
Item number 446069
Sales Unit 1 piece(s)
Headset Cannels 2
Transmission Format analog
Frequency 823 MHz – 832 MHz
Receiver Type Stationary
Pattern Cardioid
Earset 2 Ears
Mountable Antenna BNC
Charging System No
Integrated battery No
Dante No
Diversity Yes
Capsule Type Condenser
Mic Model 349293
Microphone Colour Beige
Transmission power in mW 20 mW
Usable Frequecies 65
Switching Bandwidth in MHz 9 MHz
Frequency Display Yes
Automatic Frequency Search Yes
Battery Power Display Yes
Rackkit Yes
Output XLR
Receiver Width in mm 412 mm
Receiver Height in mm 44 mm
Receiver Depth in mm 160 mm
Receiver Weight in Kg 2 kg

£439

All prices incl. VAT

Sales Rank

in Wireless Microphones with Headset Microphone

Wireless headsets mics on a budget

Whether in the rehearsal room or on stage, the t.bone free solo Twin PT 823 MHz bodypack system makes it easy for artists to say goodbye to those tangled cables. And with the headset mikes HeadmiKe-D AKG also included in this bundle, vocalists and presenters of all kinds can perform with complete freedom of movement. Equally, the bodypacks also work for guitars and basses, as well as instruments such as saxophone or trumpet, or larger devices like synths or DJ decks. Either way, the idea here is simple: A straightforward way to transmit instrument or line-level signals wirelessly and without fuss. Regulations differ internationally in the 823–832MHz range: In Germany and the UK, the band used here is licence-free. In other countries, operation can require registration, which is typically inexpensive and relatively straightforward, with the potential for more coordinated frequency use.

the t.bone free solo Twin PT823 HeadmiKeD, wireless transmission system with bodypacks and headset microphones

What's in the box?

The t.bone free solo Twin PT 823 MHz HeadmiKeD is a complete wireless system, made up of two bodypack transmitters, two headset mics, and a stationary dual receiver. Getting started is quick and uncomplicated, even for complete newcomers to UHF wireless gear. And despite sitting in the lower price bracket, this analogue system offers a solid set of features for everyday use. The bodypack transmitters are designed for instrument and line-level signals, with the headset microphones offering an effective condenser capsule with a cardioid polar pattern, which works to reduce bleed from other sources. Also in the box are a rackmount set for the receiver, two 6.3mm jack cables for connecting the receiver to a mixing desk or audio interface, and two instrument cables for linking the bodypacks (via their 3‑pin TQG connection) to a guitar, bass or similar instrument.

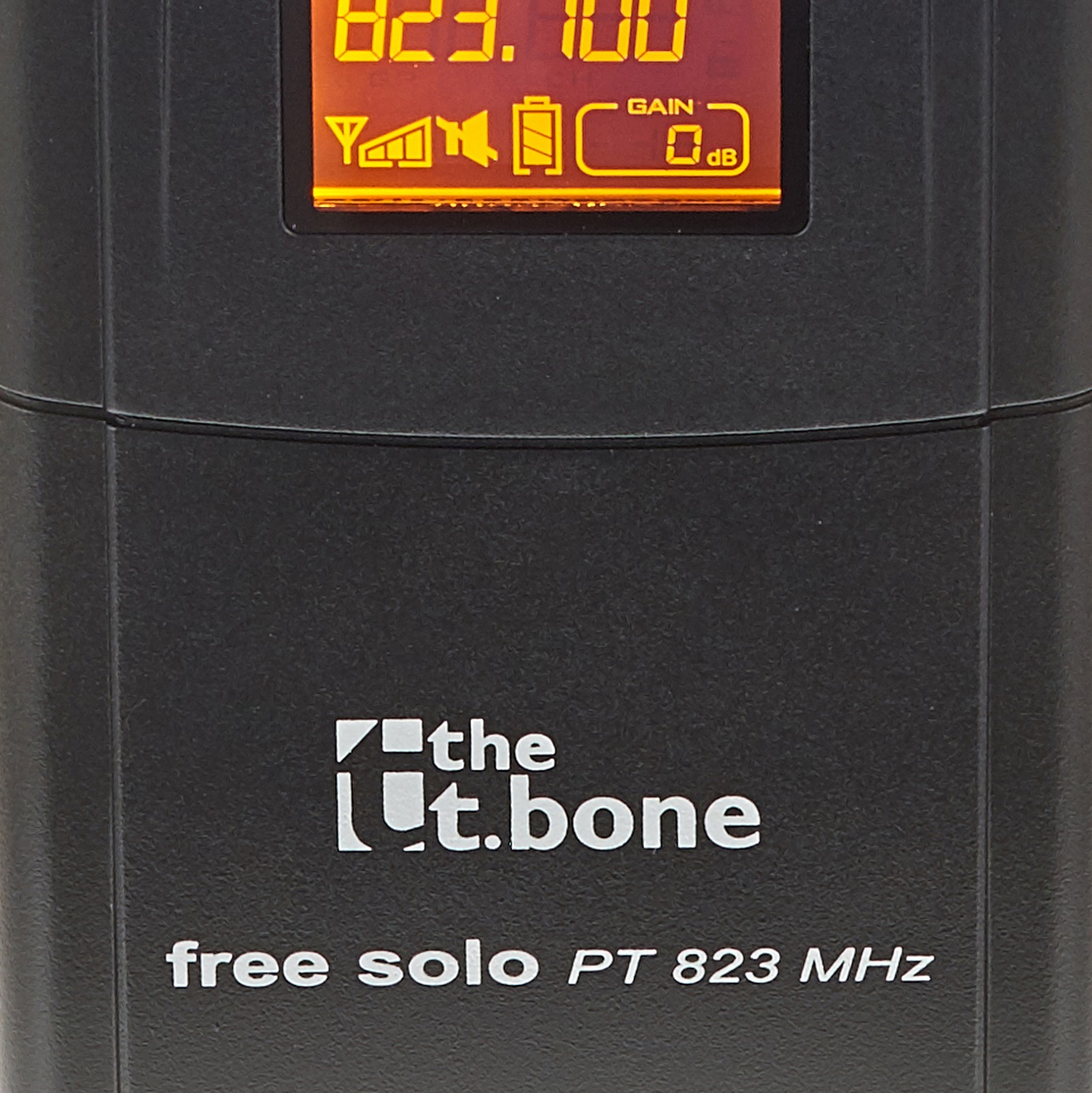

the t.bone free solo 823 bodypack transmitter

Pro features, friendly price

The free solo bodypack transmitters are fitted with displays that make them clear and easy to operate. To prevent unwanted noise when the signal becomes weak, the squelch function can be precisely adjusted. Finding a free frequency is made simpler by the receiver's automatic frequency scan. For added stability, the system transmits not only the audio signal but also a pilot tone, which enables a number of useful functions – including allowing the transmitters' battery status to be shown directly on the receiver. And for a more professional setup overall, all the main components fit neatly into the supplied transport case, which is made from durable plastic and features custom-cut foam compartments for each part (aside from the mics themselves, which are of course immensely compact and lightweight).

About the t.bone

Since 1994, the t.bone has been one of Thomann's in-house brands, and its name can be found on devices such as headphones, wireless systems, in-ear equipment, and various microphones and matching accessories. the t.bone products are made exclusively by renowned companies who also manufacture products for other well-known brands. This provides a clear advantage: Brand-quality products at very reasonable prices. And word gets around: One in seven Thomann customers has already bought at least one product from the t.bone.

Free and easy

The t.bone free solo Twin PT 823 MHz HeadmiKeD is perfect for beginners stepping into wireless technology for the first time. With all the essential functions in place and the rack kit included, it's quick to learn and straightforward in day-to-day use. Eight pre-programmed frequency groups, each with eight channels, along with an additional user-set channel, provide enough flexibility for regular wireless setups while still allowing for manual adjustment if needed. As a result, the system also works particularly well in rehearsal spaces, schools, or or anywhere there's many changing users. The transport case, the all-round solid build quality and the fact the transmitters run on standard batteries – including rechargeable ones – all add to its practical appeal (the batteries themselves are not included). The two AKG HeadmiKe-D units, in inobtrusive beige, connect to the transmitters via a 3‑pin connector and, thanks to their dual ear hooks, will fit almost every performer, whatever size their head may be. A small cable clip is included as well, making it easy to secure the cable neatly to clothing.

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
