Sirus Quad B 823 4 CH Headmike D Set

Bundle offer comprising

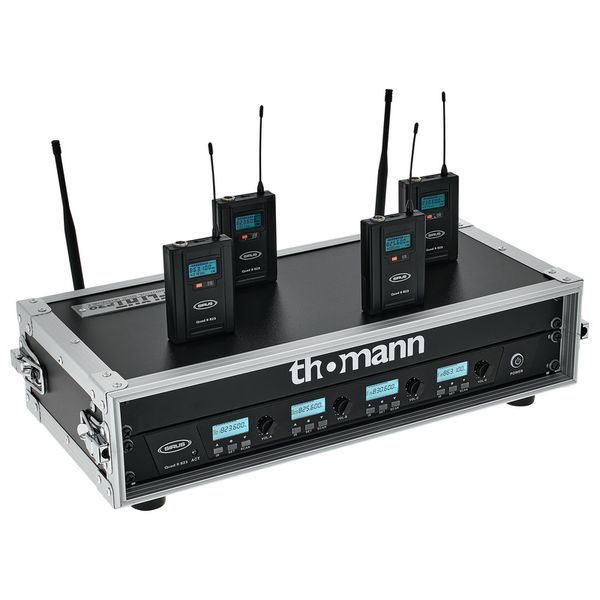

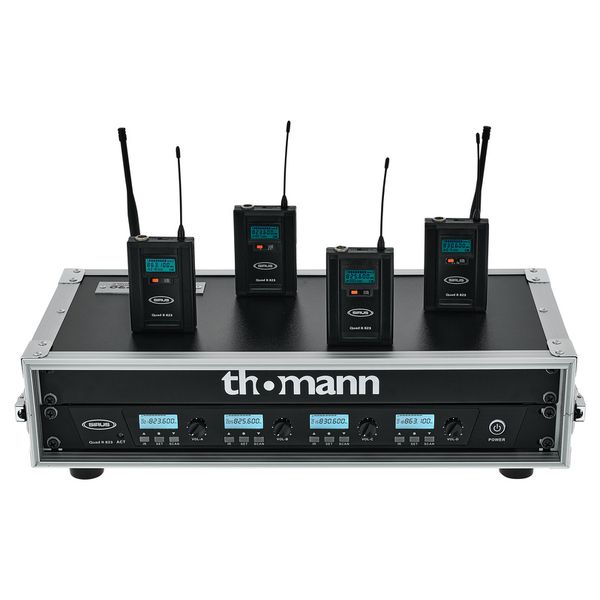

Sirus Quad B 823 4 CH Rack

4-Channel Radio Control System with four Handheld Transmitters

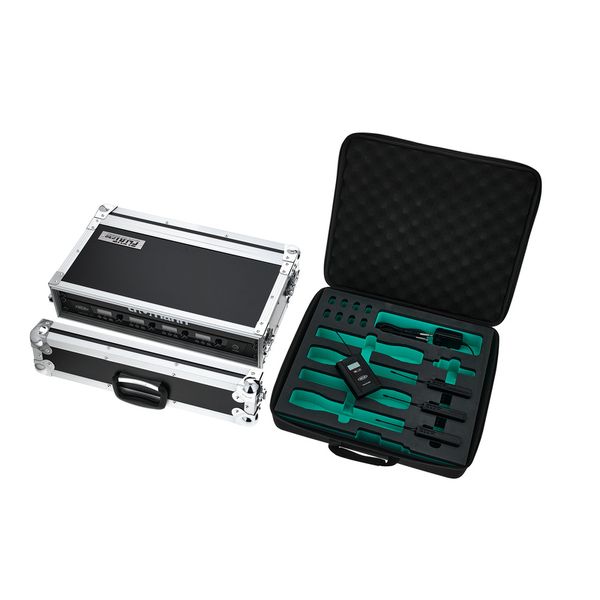

• Includes flight case, EVA case, rack panel and moulded foam insert

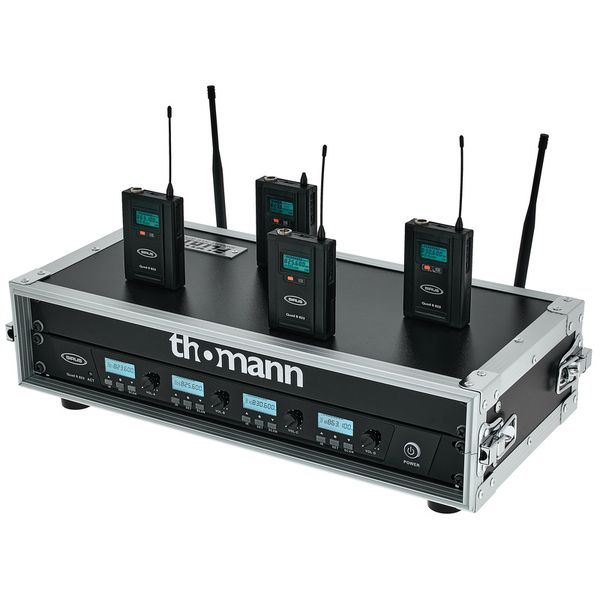

• The receiver and rack panel are already installed; four receivers are fully integrated into the foam insert

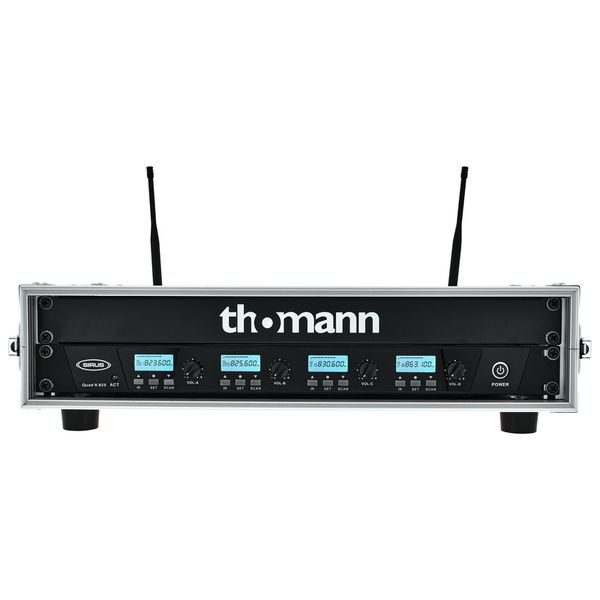

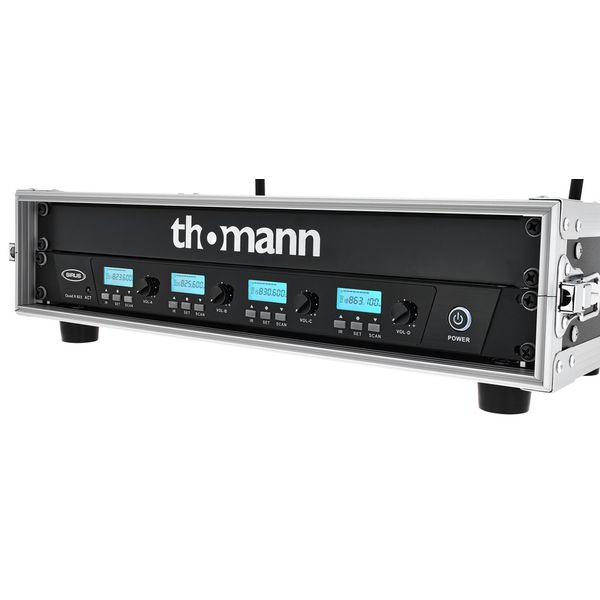

Receiver:

• Frequency scan, volume control, automatic squelch, battery indicator and infrared transmission of settings from the receiver to the transmitter for each channel

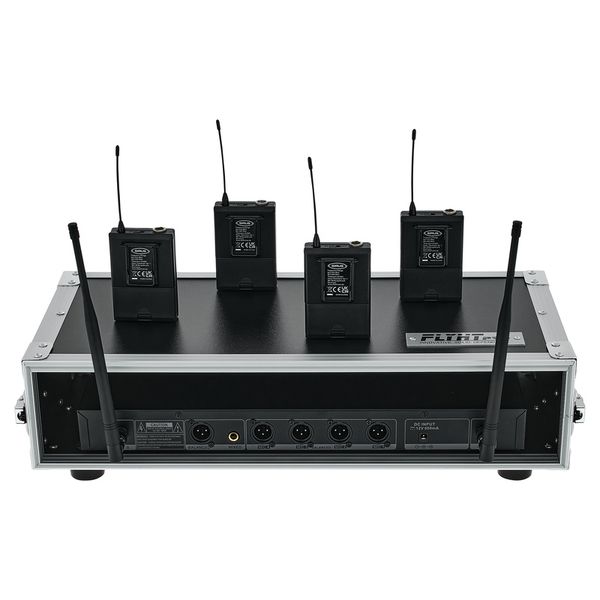

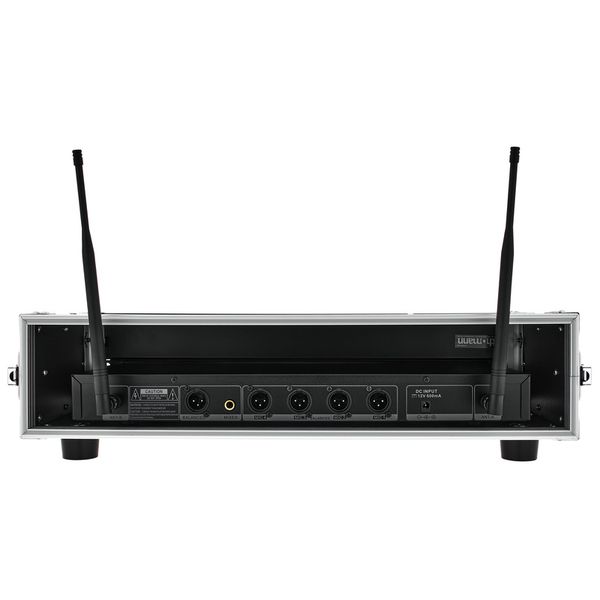

• Outputs: One male XLR per channel and one combined XLR/6.3 mm jack output
• Frequency band: 823–832 MHz, 863–865 MHz
• Frequency range: 40 Hz - 18,000 Hz
• Total harmonic distortion: < 0.5% @ 1 kHz
• Signal-to-noise ratio: > 110 dB
• Sensitivity: -95 to -75 dBm
• Modulation type: PLL

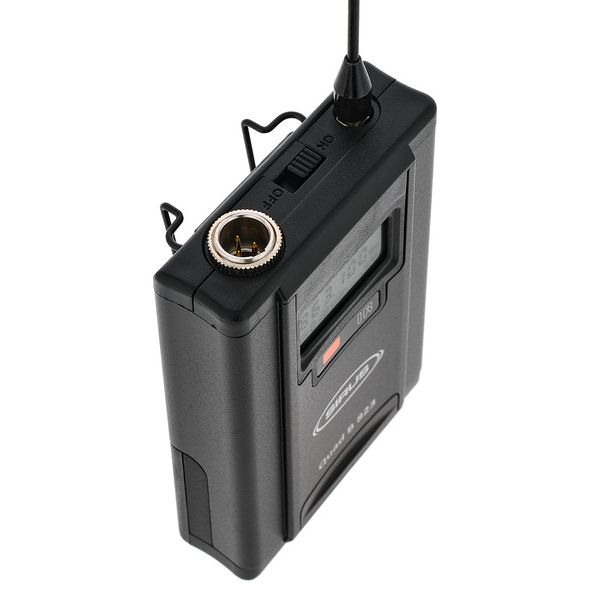

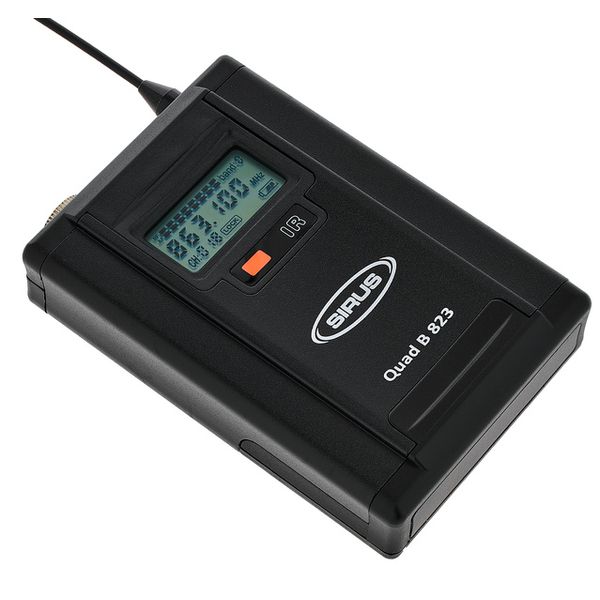

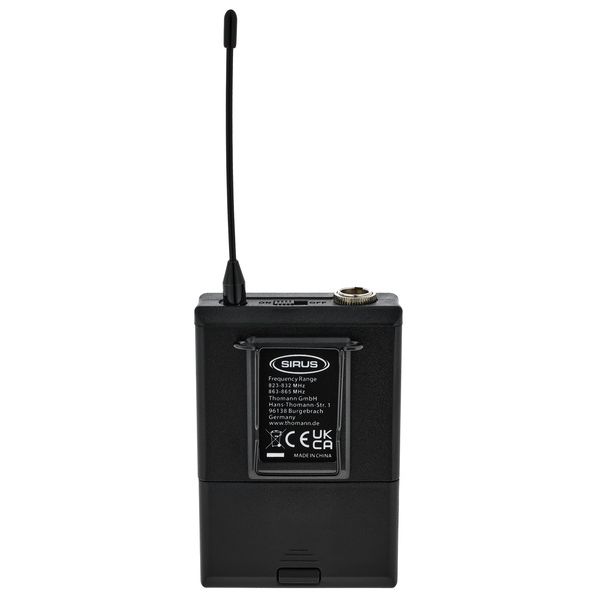

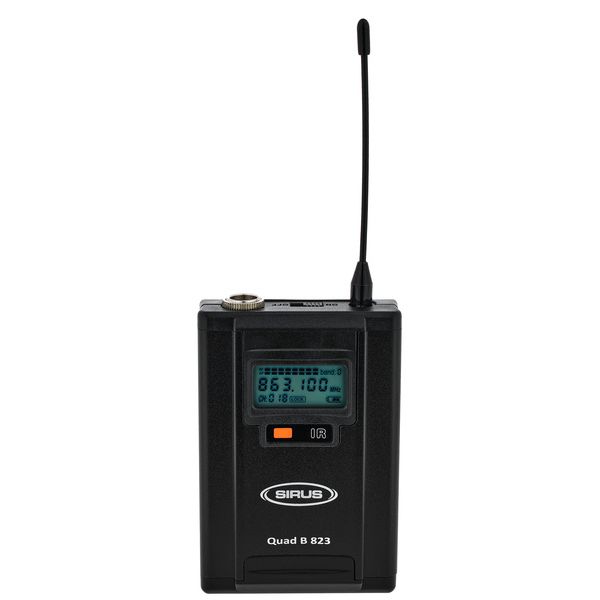

Pocket transmitter:

• 3-pin mini-XLR (TQG) connector (compatible with t.bone and AKG)
• Synchronisation with the receiver via infrared
• Frequency band: 823–832 MHz, 863–865 MHz
• Frequency range: 40 Hz - 18,000 Hz
• Total harmonic distortion: <0.5% at 1 kHz
• Transmitter power: < 30 mW (switchable)

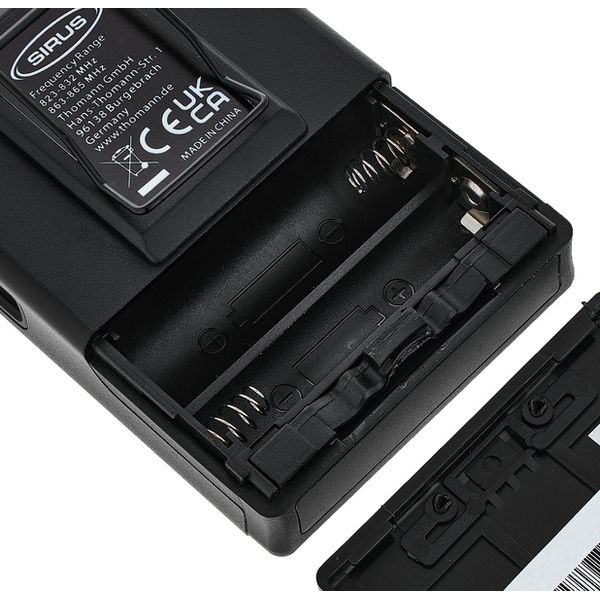

• Batteries: 2 x AA 1.5 V
• Battery life: 8 or 15 hours (depending on transmitting power)
• Display: Frequency and battery status

Inlay Sirus Quad:

• Moulded foam insert suitable for a 2U rack drawer with full extension or Thomann Inlay System case
• Suitable for four Sirus Quad handheld transmitters and pocket transmitters
• Two-colour foam (black and green)
• Integrated accessory compartment

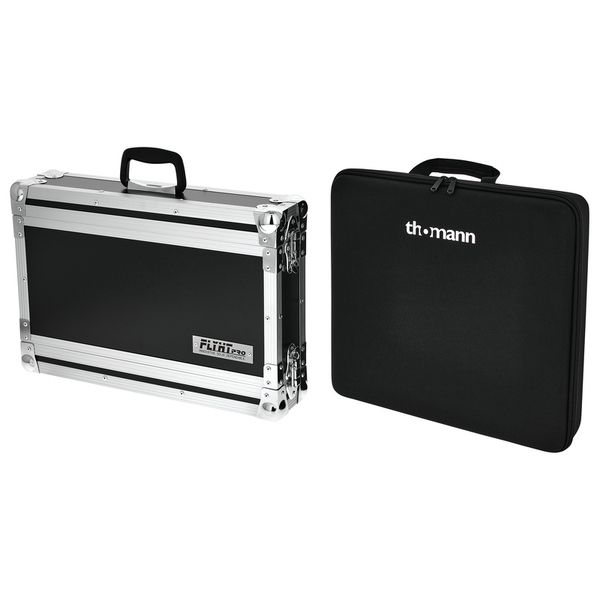

EVA inlay case:

• Suitable for drawer inlays
• Foam padding on the upper inside
• Carrying handle
• Interior dimensions (W x L x H): 405 x 375 x 60 mm
• Exterior dimensions (W x L x H): 425 x 395 x 95 mm

Flyht Pro Rack:

• 19" double-door rack with 2U of usable height
• Installation depth: 23 cm (26 cm from rail to cover / 24.4 cm from locking profile to locking profile / 22 cm from rack rail to rear locking profile)
• Material: 6 mm black-coated Multiplex
• Sturdy aluminium edges
• Rounded ball corners
• Suitcase handle
• Four drawbolts
• Continuous rack rail at the front
• Four large feet on the bottom
• Exterior dimensions (W x H x D): 535 x 145 x 335 mm

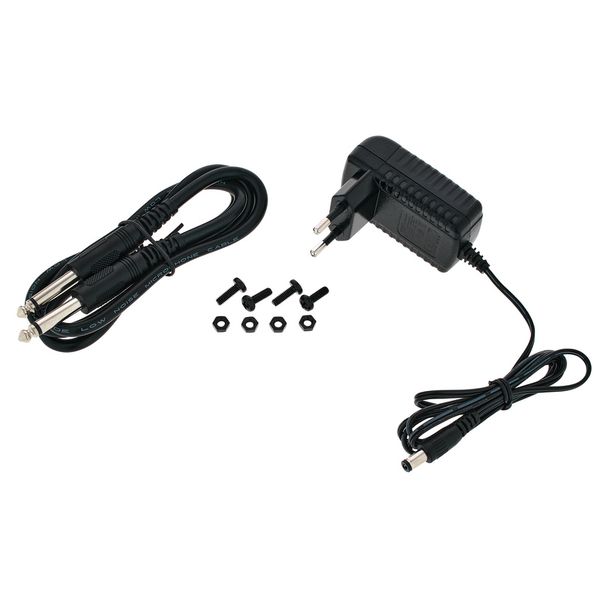

• Including a set of screws

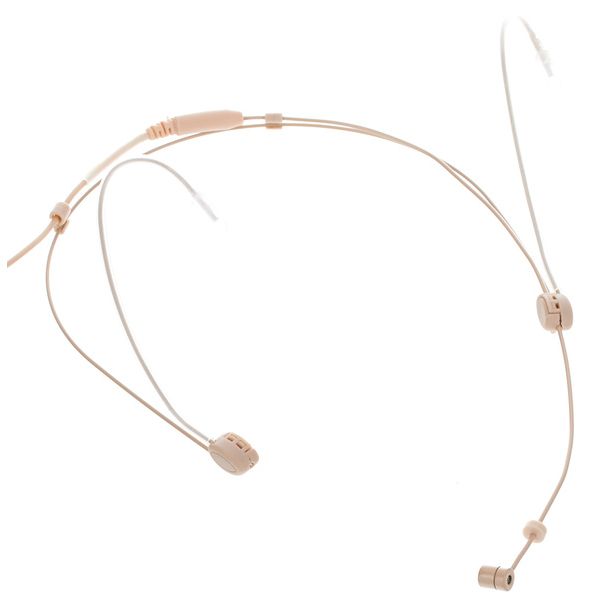

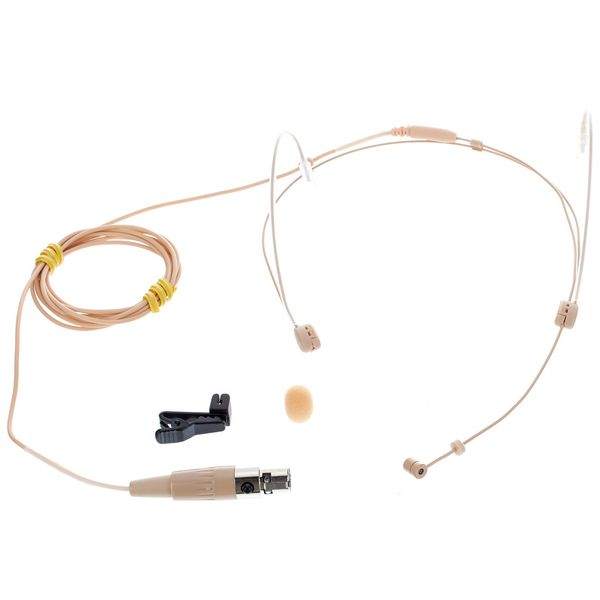

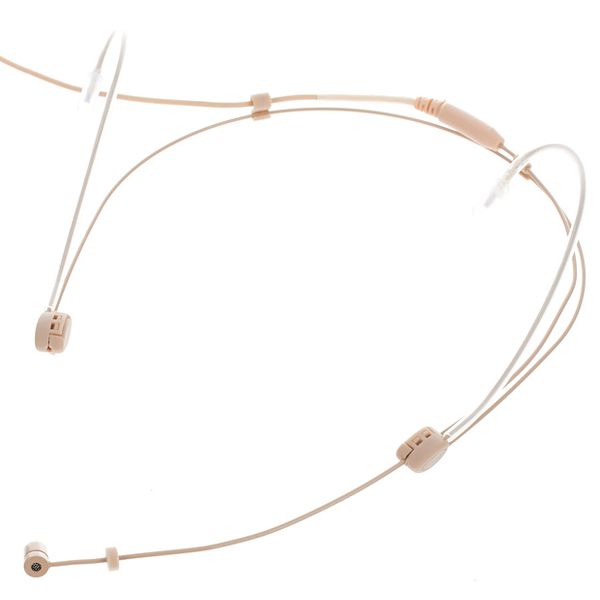

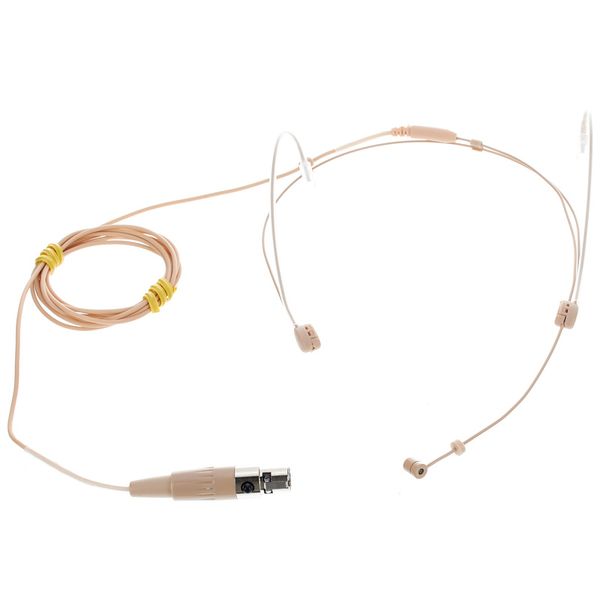

4x the t.bone HeadmiKe - D AKG

Headset Microphone

• Lightweight condenser headset microphone
• Two earhooks
• Left/right adjustable
• Polar pattern: Kidney
• Frequency range: 50 - 20000 Hz
• Sensitivity: 4.4 mV / Pa, -47.2 dB re 1 V / Pa
• Sound pressure level: 115 dB
• Impedance: 750 Ohm
• 3-Pin mini XLR connector suitable for AKG Bodypack transmitter
• Cable length: approx. 120 cm
• Colour: Beige
• Includes cable clip
• Replacement windscreen: Art. 355914 (not included)
