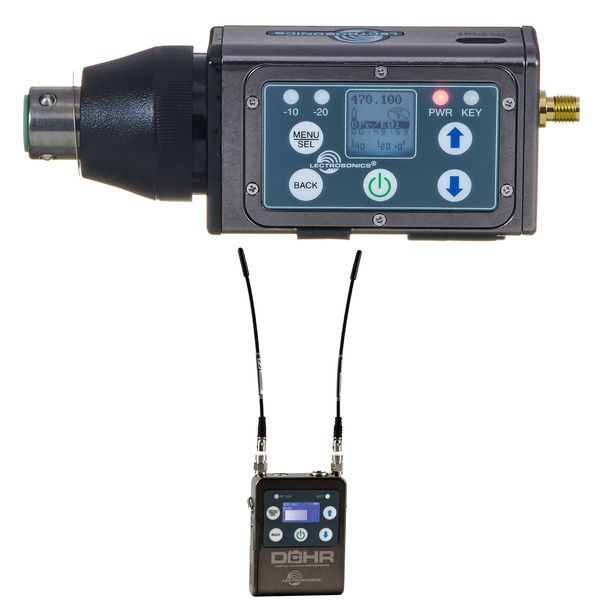

Lectrosonics DPR-A/DCHR Bundle

Bundle offer comprising

Lectrosonics DCHR

Digital 2-Channel Camera Receiver

• Compatible with DBSM, DBu, DHu, DPR, DCHT and M2T transmitters
• Selectable AES3 or analogue microphone/line level outputs
• 256-bit encryption – AES 256-CTR
• USB port for firmware updates
• Power supply via two AA batteries
• Sturdy aluminium housing
• Optional power supply via external DC with LTBATELIM
• Extremely fast RF scanning and setup via IR
• Frequency range A1B1 (470.100 - 614.375 MHz)
• 24-bit digital audio
• Audio transmission range 25 to 20,000 Hz (+0/-3 dB)
• Stereo mode: 20-12,000 Hz (+0\-3 dB)
• Output: TA5M mini XLR
• Headphone output: 3.5 mm mini jack
• Dimensions (W × H × D): 62 × 85 × 9 mm
• Weight: 259 g
• Includes 1 wire belt clip, 2 AA alkaline batteries, 2 AMJ-19 SMA antennas and 2 AMJ-22 SMA antennas

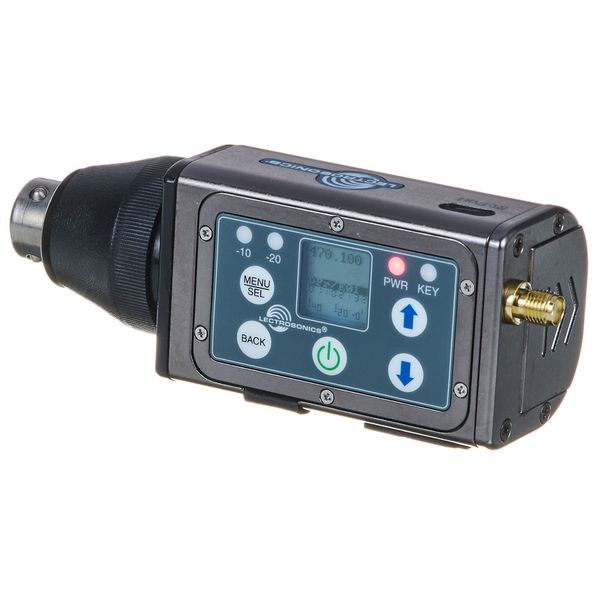

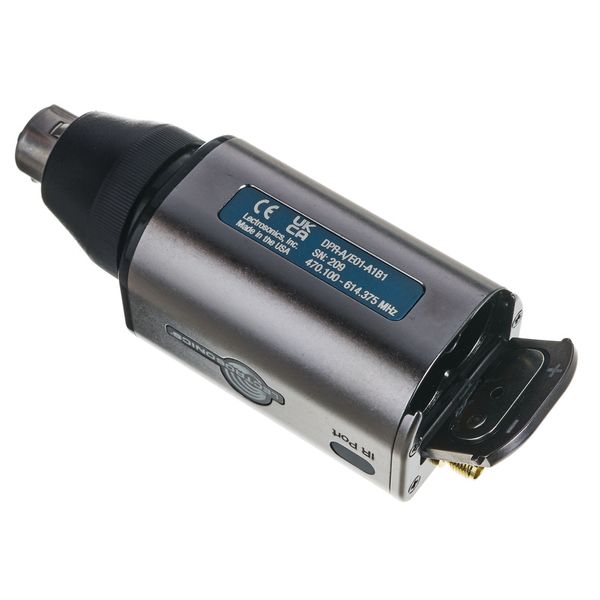

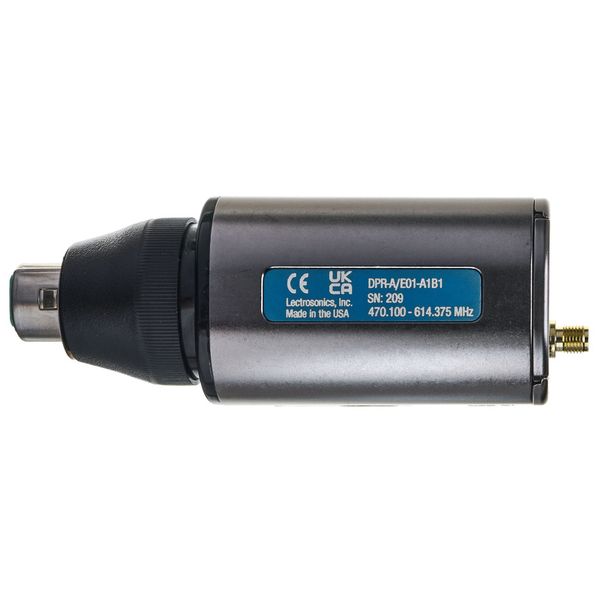

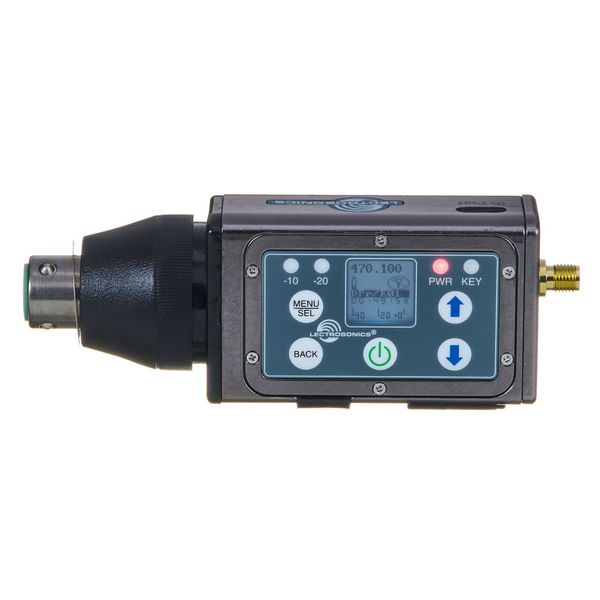

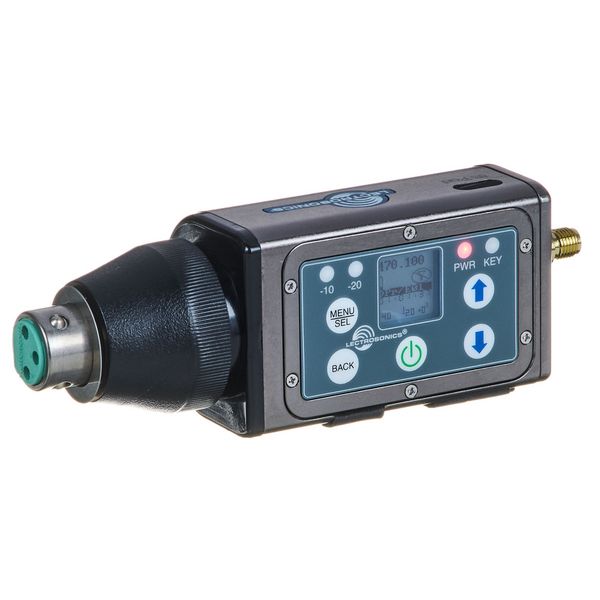

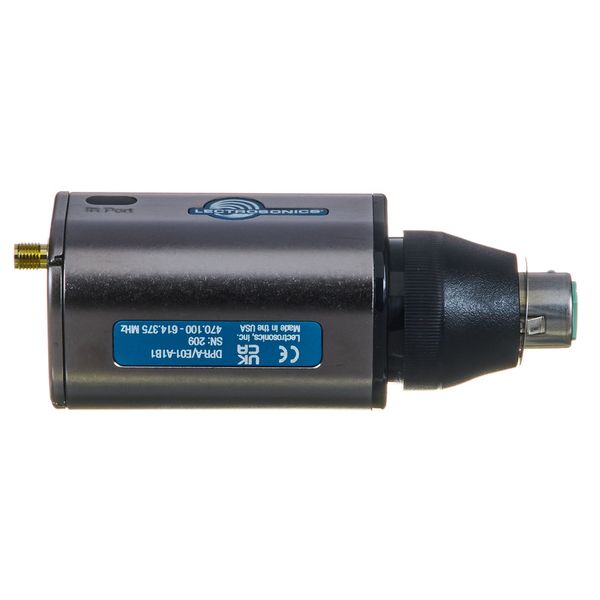

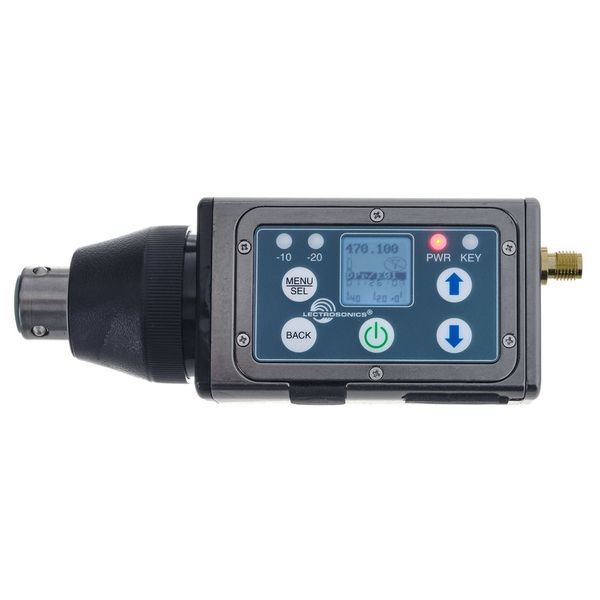

Lectrosonics DPR-A

Digital Clip-On Transmitter

• Frequency range: 470.100 - 614.375 MHz
• Microphone or line signals
• Selectaable phantom power: 5, 15 or 48 V
• Transmitter power: 25 / 50 mW
• Frequency range: 25 - 20.000 Hz, + 0.5 / - 1.5 dB
• Adjustable low cut filter
• Infrared (IR) port
• Removeable SMA-mount antenna
• Aluminium housing
• On board recording with time code jam sync
• 256-bit AES encryption
• CTR mode
• Operated with two AA batteries
• Dimensions (W x H x D): 41.1 x 35 x 106.9 mm
• Weight: 221 g

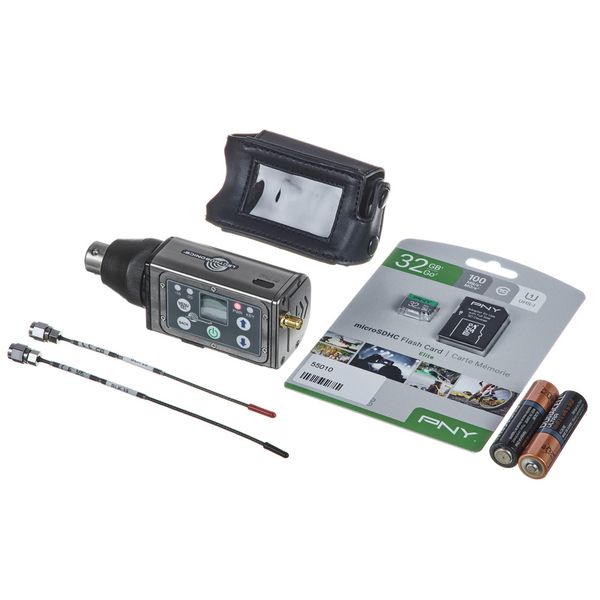

• Includes flash memory card 5510, AMM-25 antenna, PHTRAN3-A case and 2 alkaline batteries
