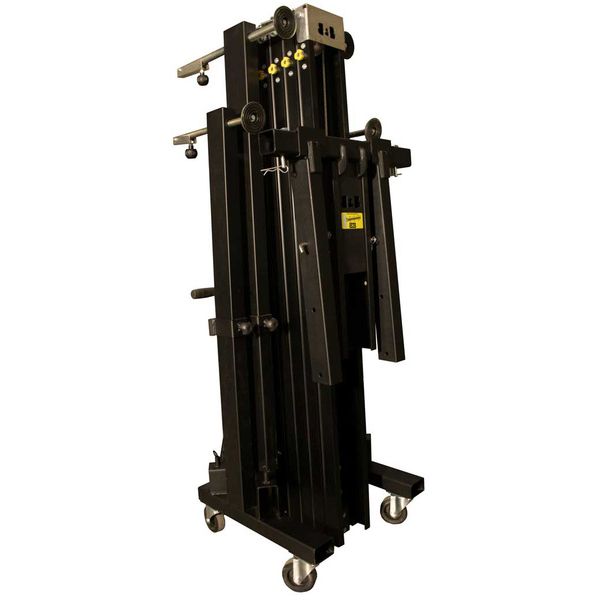

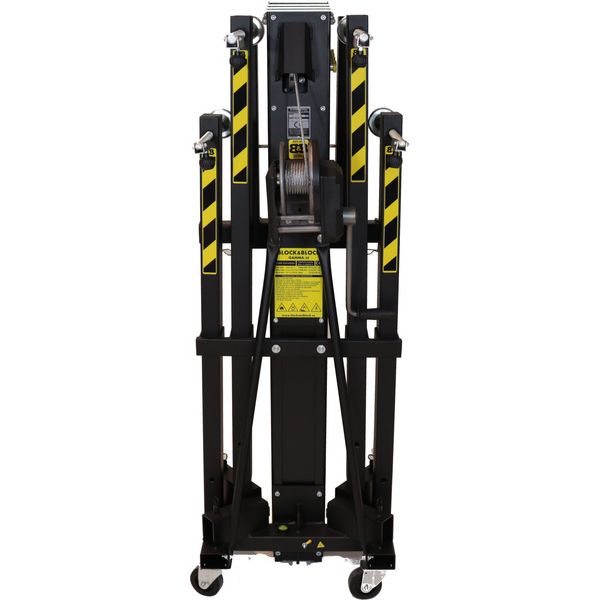

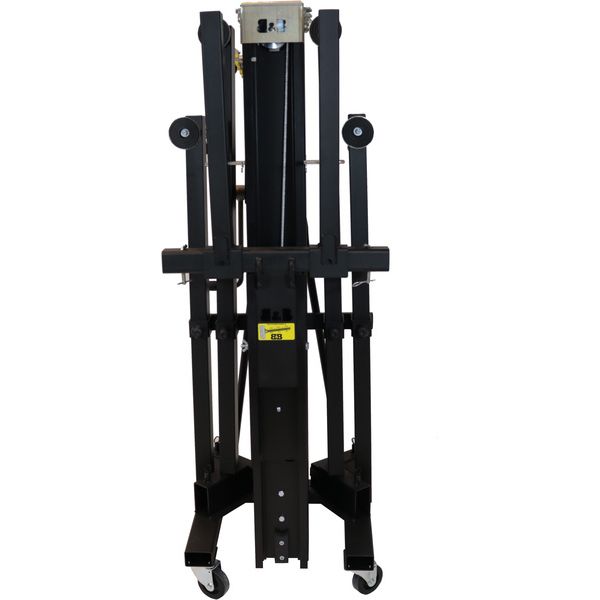

Block And Block GAMMA-30 Fork Lift 300kg 5.0m
Truss Lift
- Up to 300 kg load capacity
- Safety bolts for locking the various sections at different heights
- Safety bolts to lock the different sections at different heights

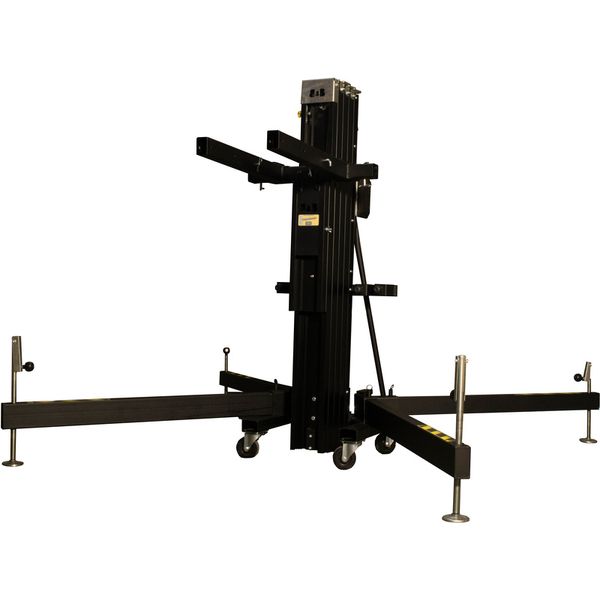

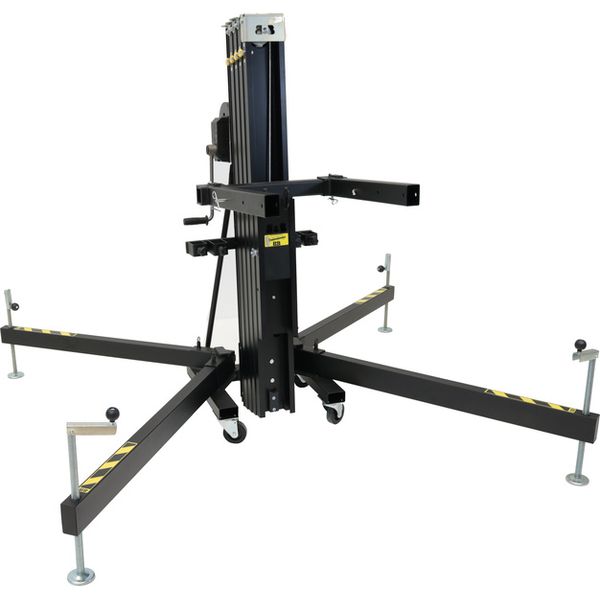

- Stabiliser with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection through epoxy coating
- Spirit level for adjusting the vertical tower position
- Earthing connection
- Castors for moving the retracted lift

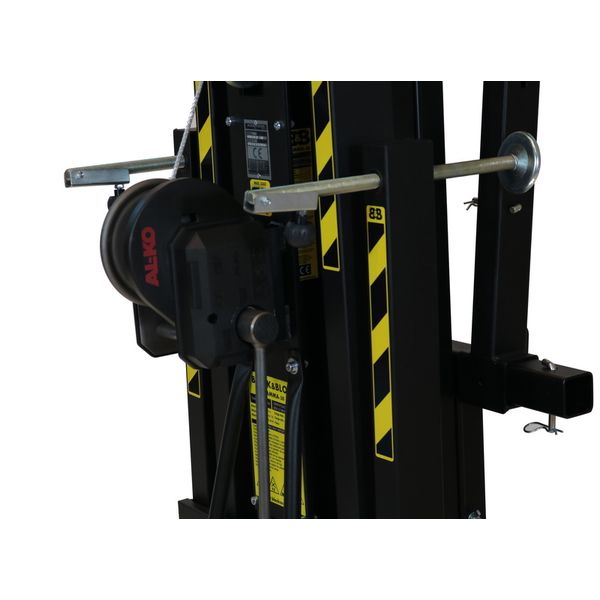

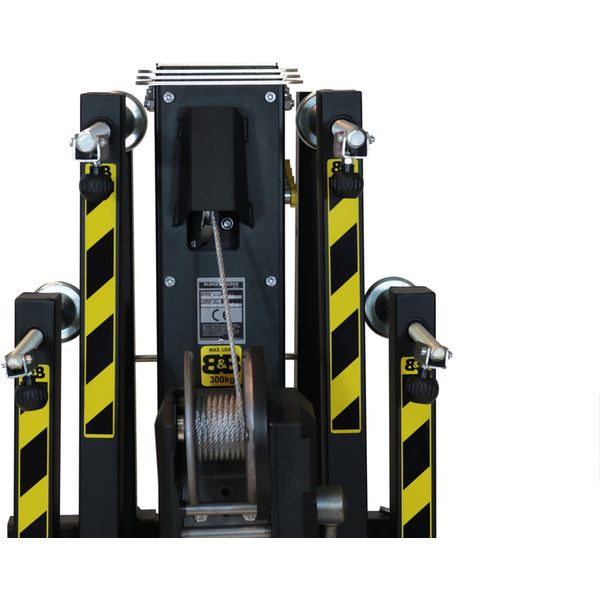

- AL-KO COMPAC 900 winch (maximum load: 900 kg with automatic load-holding brake, CE-compliant in accordance with DIN EN 13157, EN 12100 Parts I and II, and the Machinery Directive 2006/42/EC)
- Galvanised steel wire ropes, type 6x19+1 in accordance with EN 13414-1:2004
- Resistance: 1770 N/mm²
- Material: Carbon steel sections, grade S-275-J0H in accordance with EN 10219, EN 10305.5
- Height adjustable
- With BGV-C1 test certificate
- Max load capacity: 300 kg
- Minimum load capacity: 40 kg
- Height: maximum 500 cm across 4 sections, minimum 30 cm
- Material: Steel (powder-coated)
- Base area: 2.1 x 1.8 m
- Transport dimensions: 165 cm x 60 cm x 65 cm
- Weight: 131.00 kg
- Made in Europe
-
Item number 641726
-
Sales Unit 1 piece(s)
-
Construction type Tower Lift
-
Max. Load 300,0 kg
-
Adapter/spigot type Bracket
-
max. Working Height (m) 5,0 m
