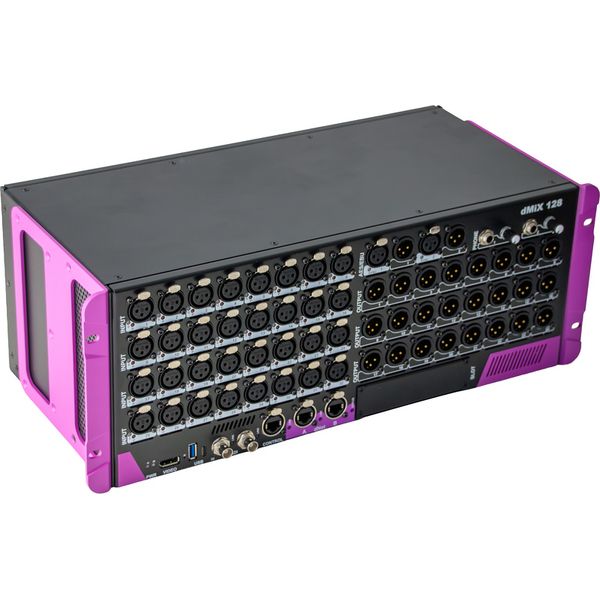

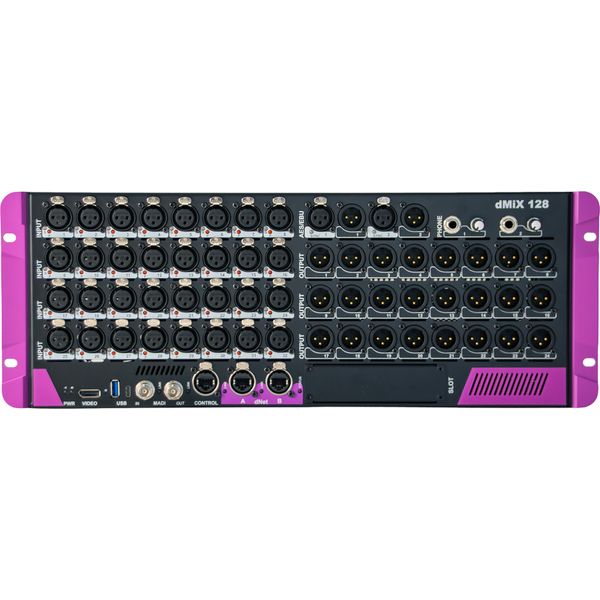

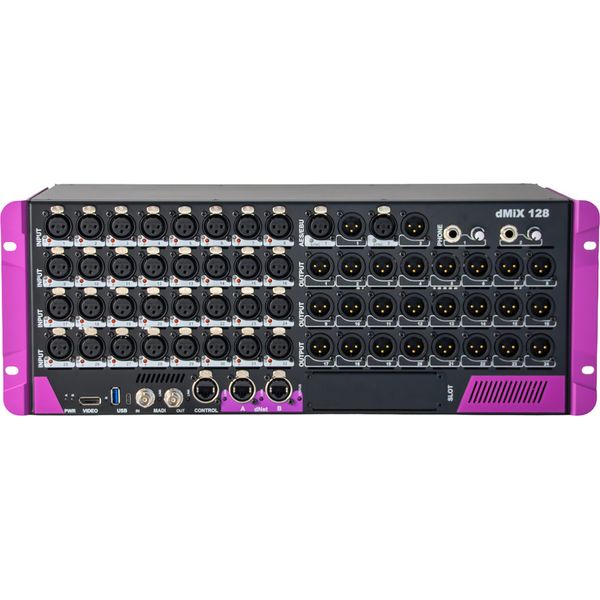

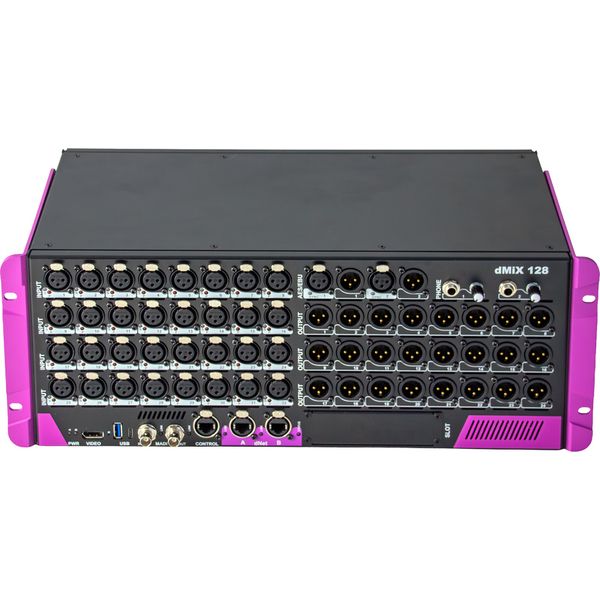

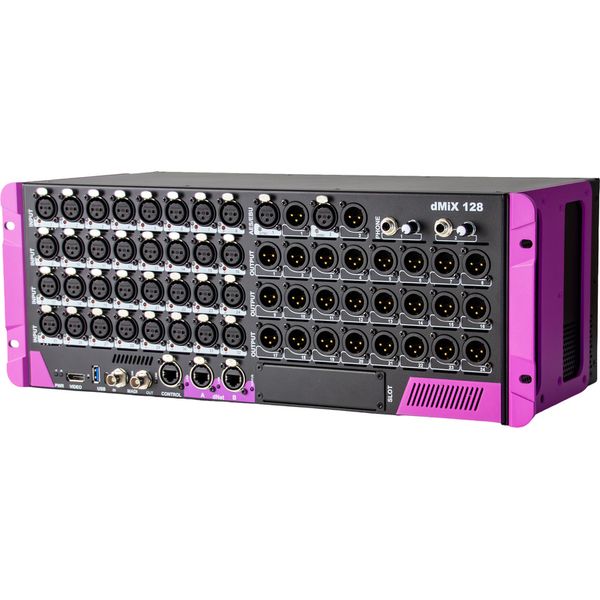

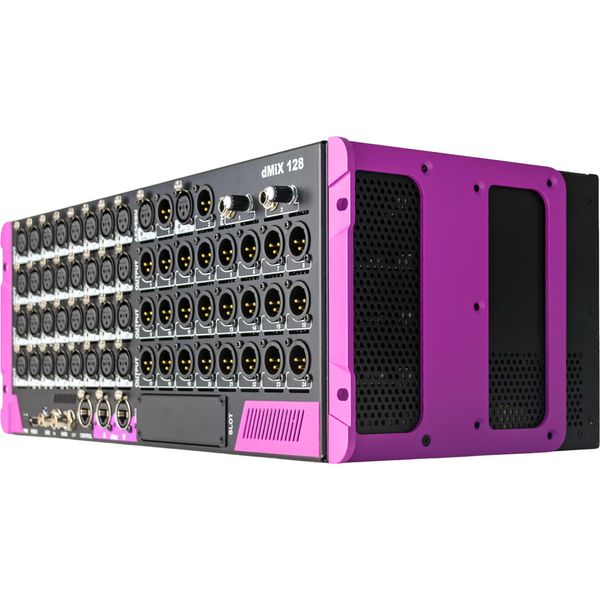

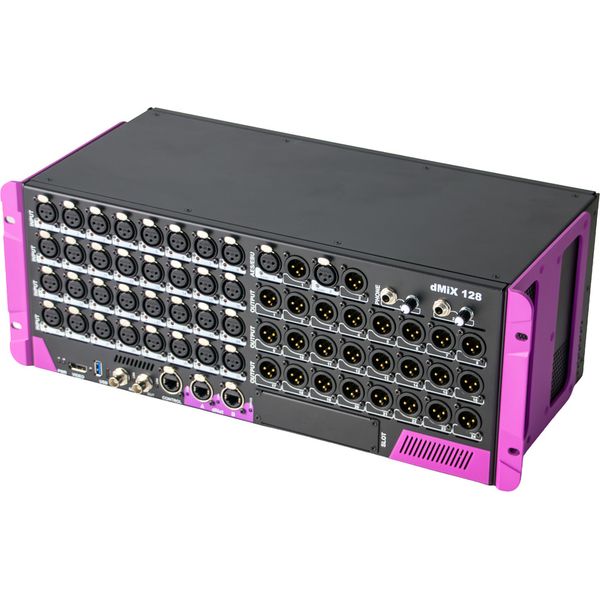

Violet Audio dmix128

128-Channel Mixer with FPGA Processing

• 32 analogue inputs: XLR mic / line in
• 24 analogue outputs: 24 XLR line out
• 2 digital inputs/outputs: 2 x stereo AES/EBU in, 2 x stereo AES/EBU out
• 64x64 MADI BNC In/Out
• 64x64 USB In/Out
• Connections: USB-A, USB-C, Video Display Port
• Cascading: up to 4 devices
• Aux way: 24
• Sub groups: 12
• DCA groups: 16
• Mute groups: 6
• Matrix: 8 x 12
• Channel processing: 4 to 8-band parametric EQ, dynamic EQ, HPF, LPF, de-esser, 31-band graphic EQ, saturator, multiband compressor
• Effect section: 12 effect slots
• Analysis tools: RTA analyser, white noise generator, oscillator
• Web-based, HTML5-compatible control software that requires no app or installation
• Network: 1 network control port, 2 audio network ports
• AES67
• Ring topology
• Redundant AES67 connections
• Expansion: I/O expansion slot for optional network cards
• Compatibility: Mixing Station app
• Windows
• MacOS
• Linux
• Integration: open API, AES67 support
• Control via third-party consoles
• Automatic recovery following a restart or power cut, real-time fault monitoring and logging
• Sample rate: 48 kHz, 96 kHz
• Latency from analogue input to analogue output: 0.3 ms
• Latency from dMix to dNet via AES67: 0.25 ms
• dNet AES67 to Dante latency: 2.0 ms

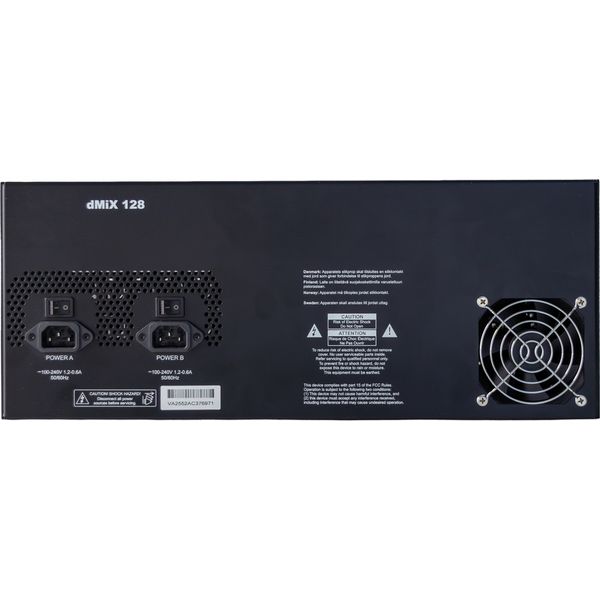

• Redundant power supply for uninterrupted operation in the event of a power supply failure (2 power supplies)
• Dimensions (W x D x H): 440 x 240 x 176 mm
• Weight: 8.0 kg
