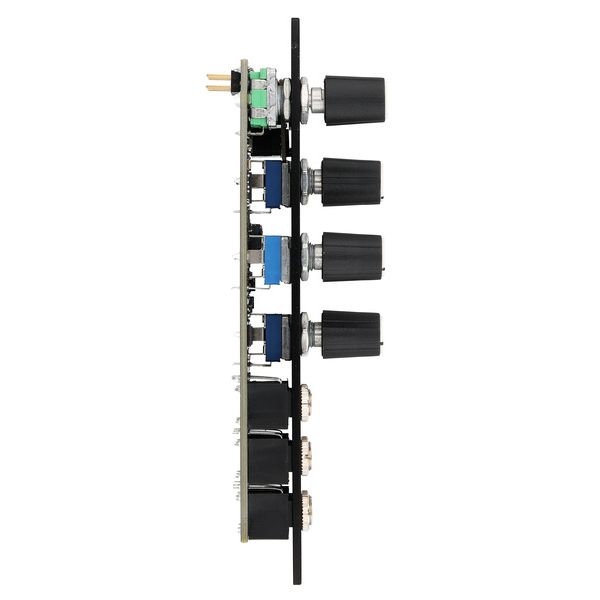

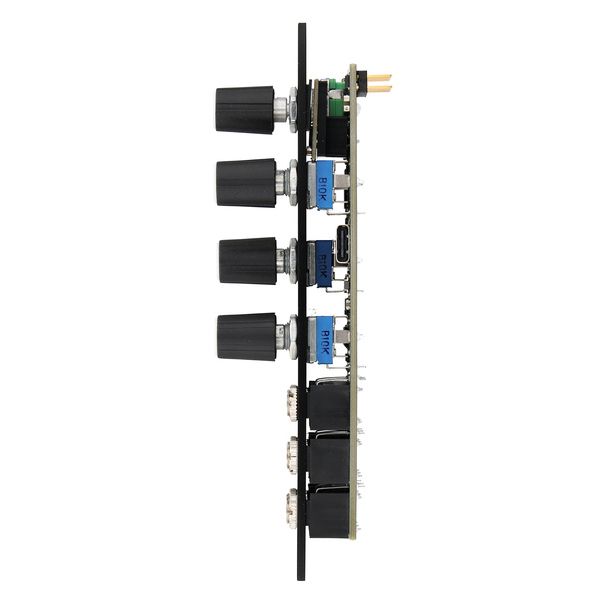

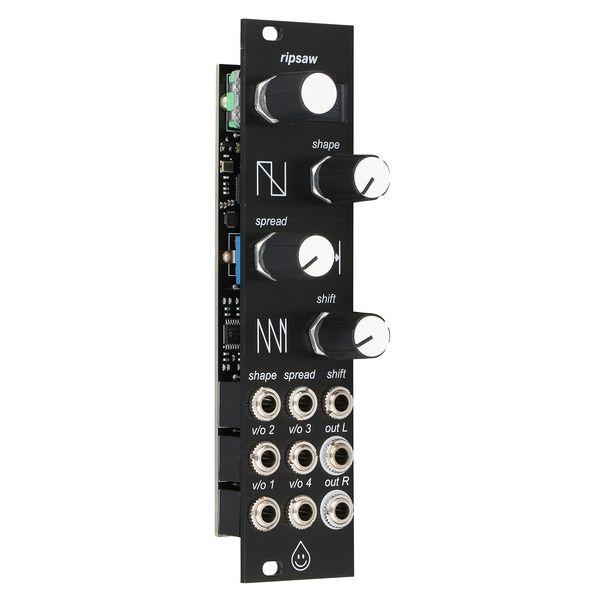

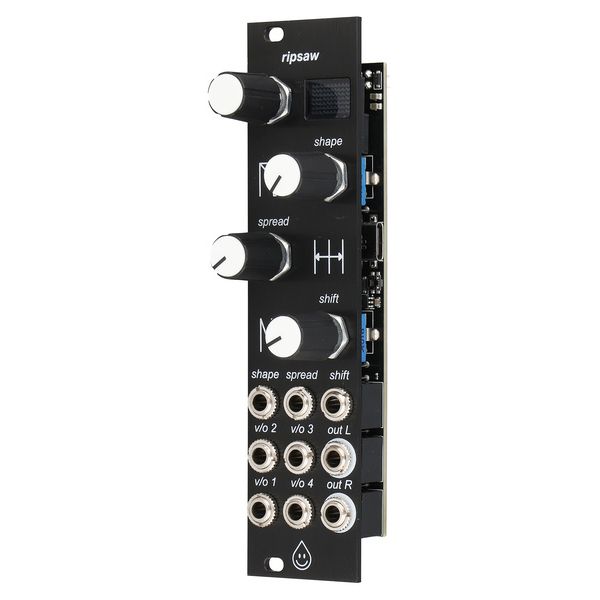

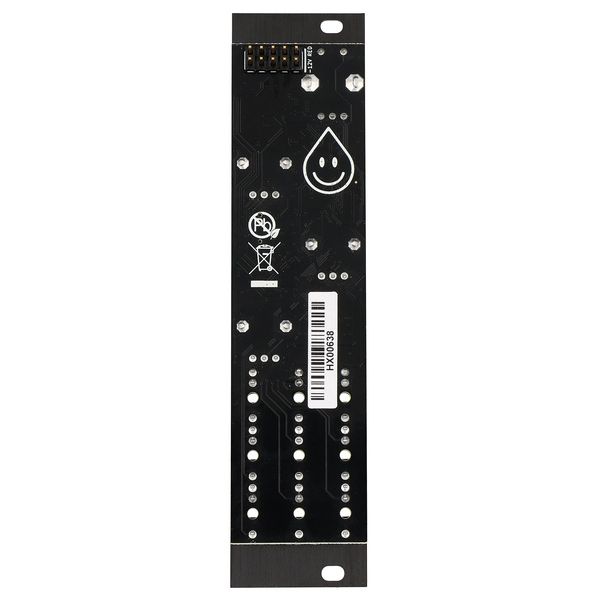

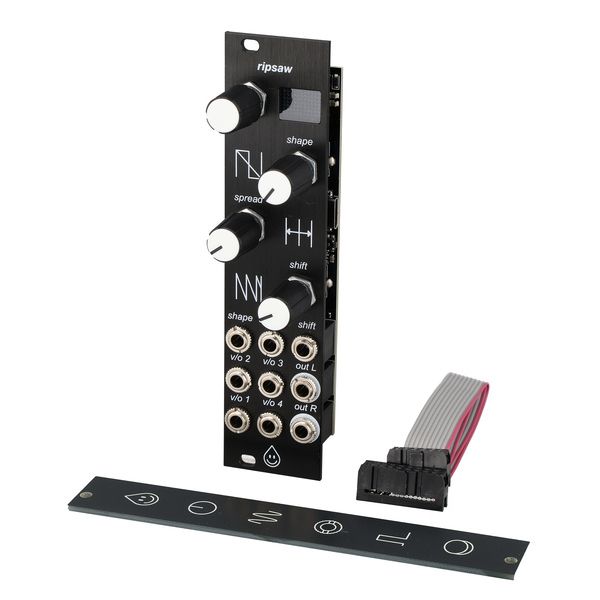

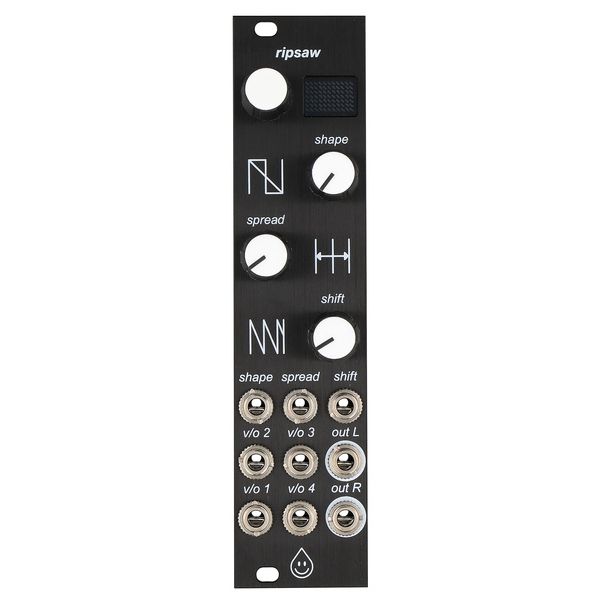

Acid Rain Technology Ripsaw
Eurorack Module
- Polyphonic digital stereo oscillator
- Four independent voices, each with seven oscillators
- Encoder and display for precise tuning
- Shape control blends the waveforms of all oscillators, ranging from sawtooth to square wave
- Spread control for detuning all oscillators to create classic Supersaw sounds
- The Shift control adjusts the pitch of an additional hard-sync oscillator
- CV inputs for all parameters
- Four pitch CV inputs (V/oct.)
- Stereo output
- Power consumption: 42 mA (+12 V) / 5 mA (-12 V)
- Width: 6 HP
- Depth: 25 mm
-
Item number 645736
-
Sales Unit 1 piece(s)
-
Analogue No
-
Digital Yes
-
Width 6 TE / HP
